电缆与连接器电动汽车直流充电机/放电器
SEVD™v3
主要部分
![SEVD-V3主要部分](http://www.mobileteer.com/sites/default/files/styles/crop_sei_cp_1096/public/2021-04/products/specification_img/chademo_v3_01.jpg?itok=AYw8xX2G)
![product_1_sp_0.jpg.png](http://www.mobileteer.com/sites/default/files/styles/crop_sei_cp_533x400/public/2021-04/products/big_img_sl_fxh/product_1_sp_0.jpg.png?itok=0upH45RS)
操作规程
指令交配的汽车进口
1。伴侣对汽车连接器。
2。插入它坚定并检查不脱落,然后连接完成。
![product_2_0。](http://www.mobileteer.com/sites/default/files/styles/crop_sei_cp_533x400/public/2021-04/products/big_img_sl_fxh/product_2_0.png?itok=9Wq7cPZe)
如何删除
1。确认红色马克是电磁锁显示消失。
2。按下释放按钮,退出连接器
规范
型号 | 直流电动汽车快速充电器 和车辆回家(V2H) |
SEVD™v3 | SEVD™-V3E (CE) |
额定电流 | 功率(电阻) | 25(35.5保险丝) | |

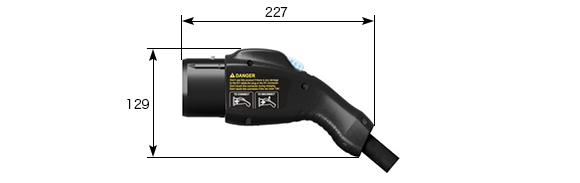

维 | ![]() |
||
主体 | 体重(公斤) | 约0.6 | |
材料 | 主体:树脂 门闩:金属 释放按钮:树脂 |
||
电缆 | 直径(毫米) | 约。φ20 | 约。φ22 |
重量(公斤/米) | 约0.52 | 约0.6 | |
电源导线尺寸(毫米²) | 3.5 | 4.0 |
